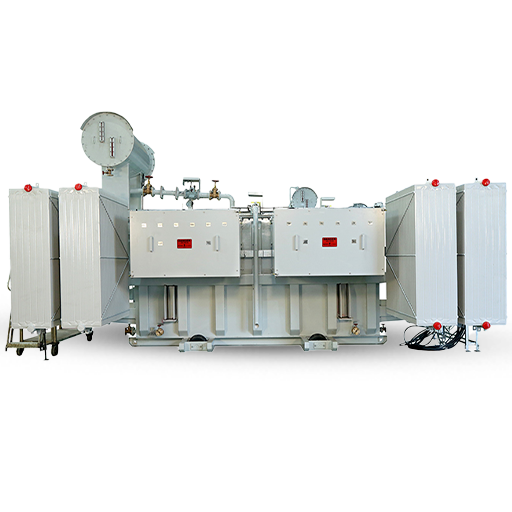

Inverter Duty Transformers (IDTs) are designed to operate under non-sinusoidal waveforms, handling harmonic distortions and high-frequency switching associated with power electronics. These transformers are robustly built to support VFD, solar, wind, and EV-based energy systems.
Built to operate efficiently under non-sinusoidal waveforms from inverters or VFDs.
Electrostatic shielding minimizes EMI for sensitive electronic loads and systems.
Customizable phase shift configurations for harmonic reduction and grid stability.
Supports high-capacity solar farms, BESS, and EV charging networks.
Available in both air and oil-cooled variants for diverse application settings.
Optimized to work with solar inverters, battery chargers, and variable speed drives.
| Specification | Details |
|---|---|
| Rating | 100 kVA to 17,500 kVA (custom-built) |
| Ratio | As per system (e.g., 33kV/0.433kV or custom) |
| Voltage Class | Up to 33kV |
| Frequency | 50/60 Hz |
| Winding Material | Copper / Aluminium |
| Cooling Type | ONAN / ONAF / AN / AF |
| Duty | Indoor / Outdoor |
| Electrostatic Shielding | Between HV & LV windings |
| Vector Group | Dd0 / Dyn11 / Custom as per design |
| Insulation | Epoxy Resin / Mineral Oil / Silicon Oil |
| Applicable Standards | IS 2026, IEC 60076, IEEE C57.110 |

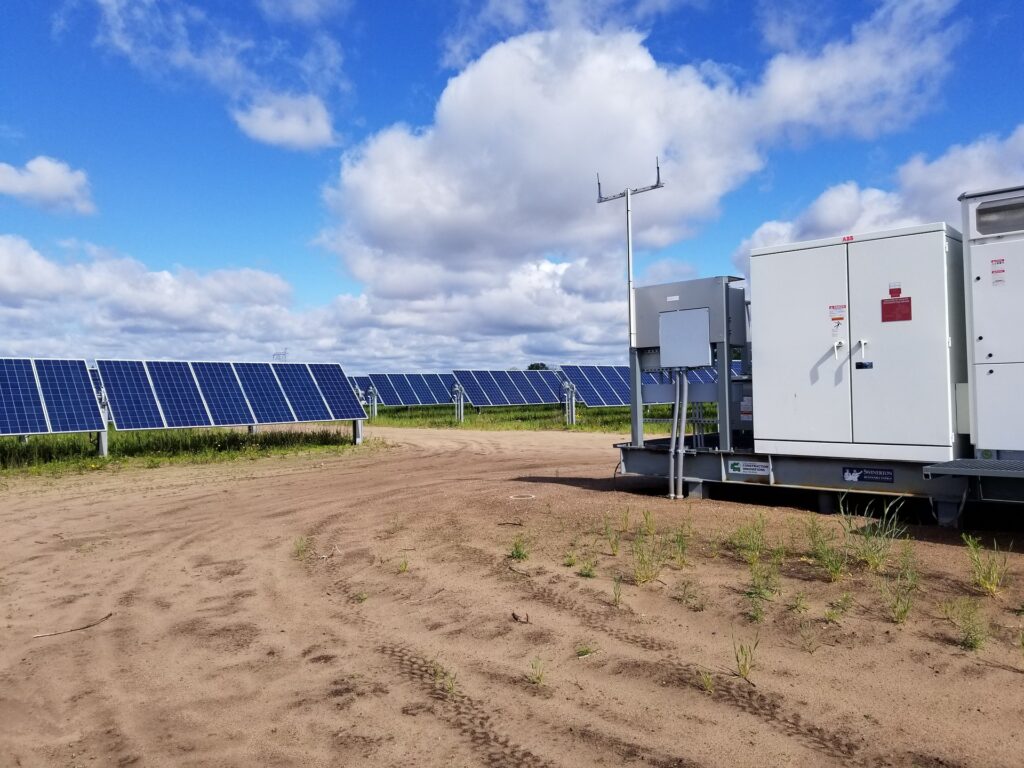

Connects solar farms to grid or commercial loads with harmonic isolation.

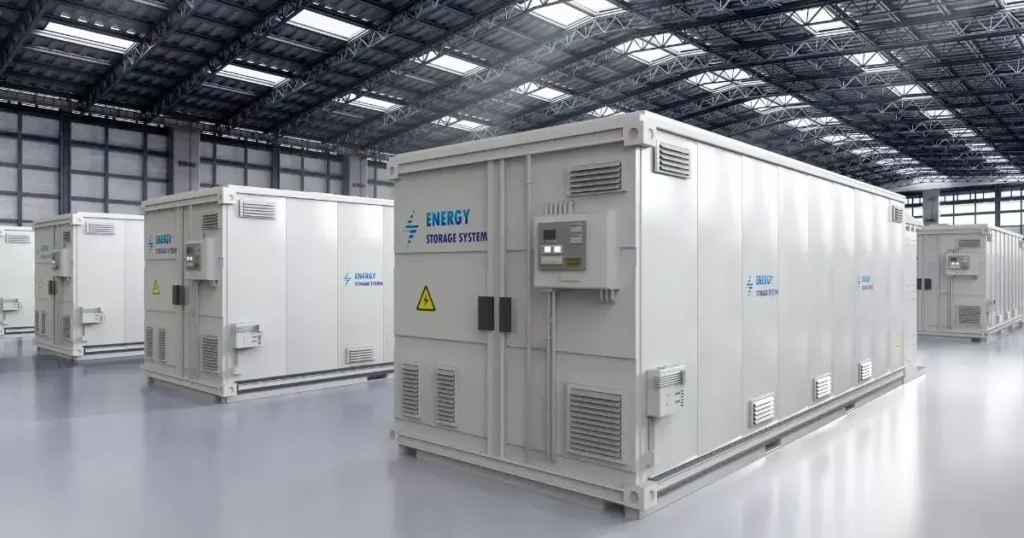

Supports bidirectional power flow in advanced battery-based power solutions.

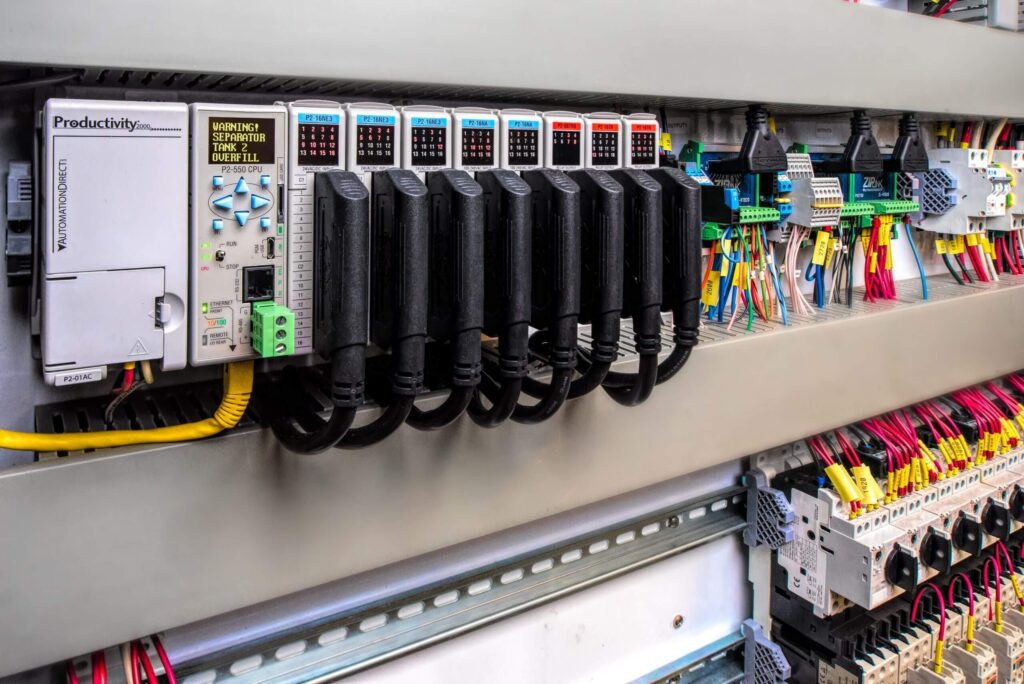

Stabilizes voltage output for variable speed motor drives in industrial plants.
Used in high-speed charging stations to convert and regulate power effectively.

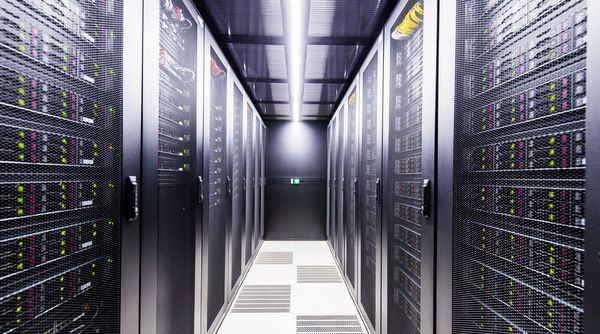

Supports uninterrupted and clean power delivery for critical digital infrastructure.
