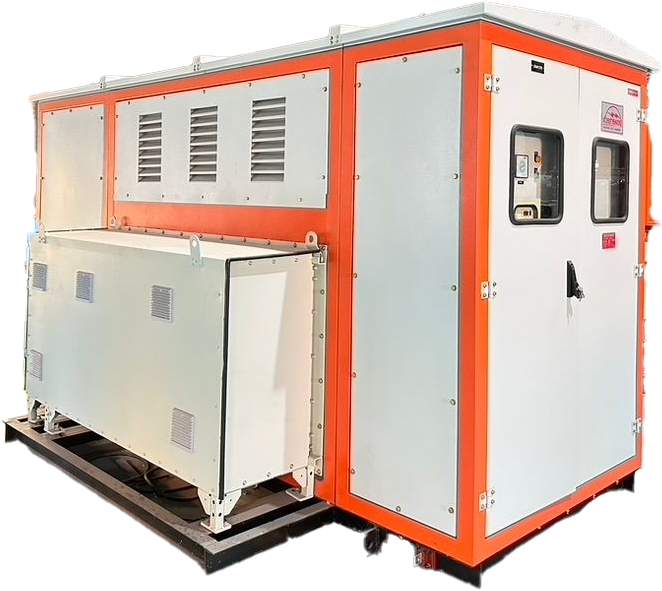

Powertech offers factory-assembled CSS integrating transformer, HT panel, and LT panel in one enclosure. Available in oil-cooled and cast resin variants, these are ideal for compact and fastdeployable power distribution systems
Factory-assembled unit combines HT panel, transformer, and LT panel, reducing interface issues.
Each unit undergoes rigorous in-house testing, ensuring quick and reliable installation on-site.
Ideal for urban areas or projects with space constraints due to its modular, low-profile design.
Minimizes site work and installation time, ideal for time-sensitive or remote deployments.
Galvanized or SS options with IP-rated protection make it suitable for outdoor applications.
Available in both oil-filled and cast resin configurations to suit specific safety and environmental needs.
| Specification | Details |
|---|---|
| Range | 250 kVA to 2500 kVA |
| Voltage Class | Up to 33kV |
| Transformer Type | Oil-Cooled / Cast Resin (CRT) |
| Cooling Type | ONAN / AN / AF |
| Enclosure | Galvanized / Powder Coated / Stainless Steel (SS) |
| Ingress Protection | IP23 to IP55 |
| Applicable Standards | IS 14786, IEC 62271-202 |
Used in intelligent urban infrastructure where space and speed are critical.
Helps decentralize power distribution across city grids, reducing energy loss and boosting uptime.
Installed at commercial hubs for secure, integrated power delivery without bulky substations.
Deployed in engineering and infrastructure projects where speed, safety, and compactness are vital.
